e-catalog and software

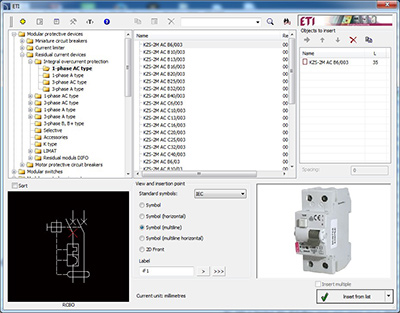

ETI CAD

Plug-in library for various CAD programs (AUTOCAD, ZWCAD, BRICSCAD, GSTARCAD, PROGECAD...)



video tutorial for ETICAD:




ETI CAD installations, benefits- Why to use this free sotware

ETI CAD


Power losses configuration tool

The program that calculates the total thermal losses of the selected equipment and provides an analysis and recommendations for the installation of this equipment in the selected switchboard, taking into account the maximum allowable heat dissipation for this switchboard.


Power losses configuration tool

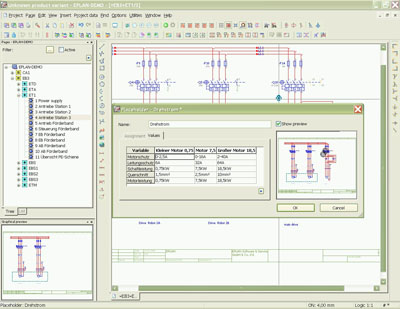

More than 3000 EPLAN ETI products, also on EPLAN dataportal


For EPLAN designers are now available more than 3000 ETI products, for users in residential, commercial, industrial installations:

ASTI program:
MCBs: ETIMATs (from 0,5A to 125A, AC/DC), residual current circuit breakers: EFI-2, EFI-4, residual current circuit breakers with integral overcurrent protection: KZS-1M, KZS-2M, KZS-4M.

Fuse links NV, D, C, D0: Fuse links gG/aM/gF/gTr characteristics, new ETI ceramic and plastic fuse bases, neutral terminal bases, LV NV fuse-rail tables, strip type fuse-switch-disconnectors and accessories.

ETICON program:
Miniature, motor and auxiliary contactors, overload relays and accessories.

Green protect DC program:
Fuse links CH in NV/NH DC, gPV/gR characteristics, DC fuse bases and disconnectors.

Product information is available in 11 languages: English, German, Polish, Slovak, Croatian, Slovenian, Czech, Romanian, Hungarian, Russian and Ukrainian. Products include images, sizes, 2D views and links to product websites in 3 languages: English, German and Russian.

Products are created in tree structure, similar to ETI catalog and users just need to define the structure. Because of a tree, it is easier to choose products and enabling a good product overview.

The tree structure can be downloaded in main file bellow.

With implemented accessories, a designer has an option to choose a suitable disconnector or contactor accessories.

EPLAN users can download the the xml and edz library of ETI products.

More information on EPLAN webpage:
https://www.eplandataportal.com/en/news/news/article/eti-elektroelement-more-than-3000-eti-products-online-on-eplan-data-portal-51371-3/




ETI EPLAN Instructions for import

ETI EPLAN EDZ and XML database with photos and 2D views

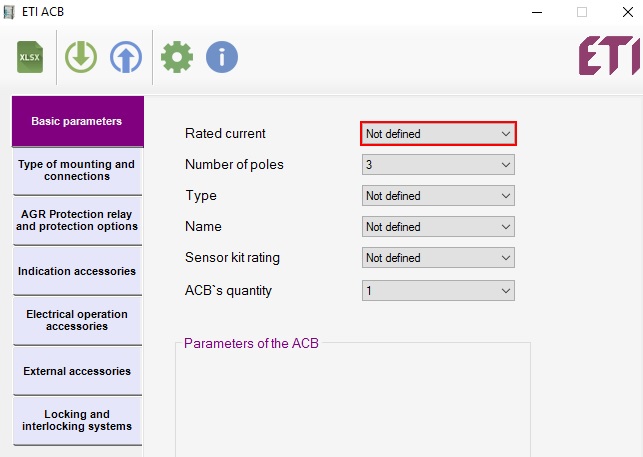

ETI ACB Configurator





ETI ACB Configurator

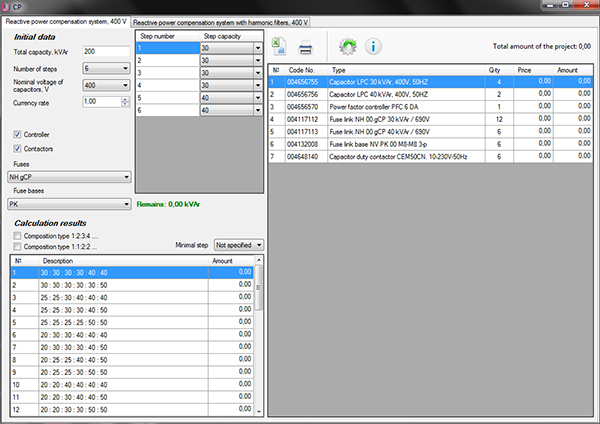

CP Program

Software for calculation and selection of appropriate reactive power compensation components.

CP Program

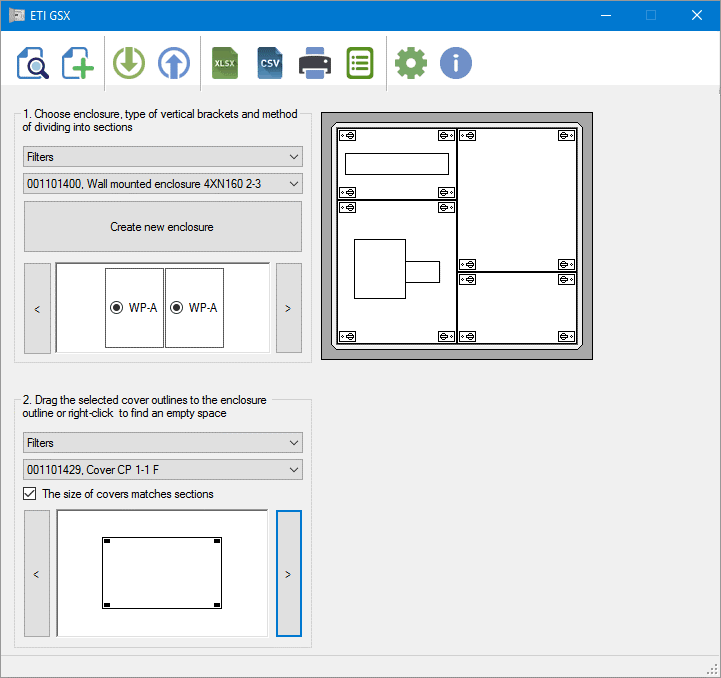

GSX Configurator - Program



GSX Configurator Program


CAD libraries

CADdy++/See Electrical



CADdy++/See Electrical library follows ETI printed catalogue and KAT-Client electronic catalogue and provides symbols and dimensional drawings for ETI products.


ETI Library for CADdy++/See Electrical
