bistabile Schalter und Relais
Items:
0
002470007
MR-41 UNI
- Klassifizierungsname:
- Stromstoßrelais
- Storage temperature (°C):
- -30 ... +70
002470008
MR-42 UNI
- Klassifizierungsname:
- Stromstoßrelais
- Storage temperature (°C):
- -30 ... +70
002470094
MR-41 230V
- Klassifizierungsname:
- Stromstoßrelais
- Storage temperature (°C):
- -30 ... +70
002470095
MR-42 230V
- Klassifizierungsname:
- Stromstoßrelais
- Storage temperature (°C):
- -30 ... +70
002464165
RBS-BIK
- Klassifizierungsname:
- Kondensator
002464100
RBS220-10-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 20 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464112
RBS220-10-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 20 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464101
RBS225-10-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 25 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464113

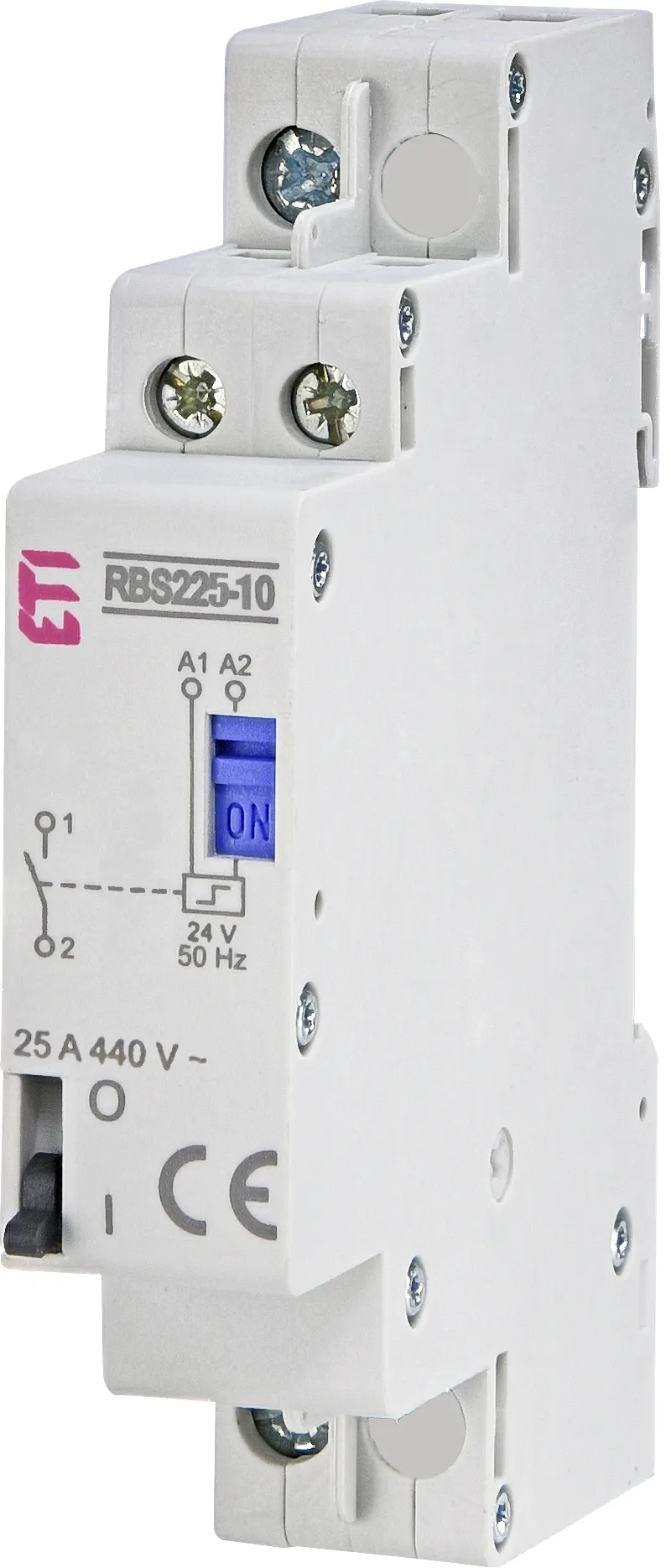

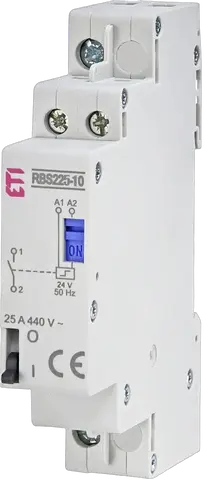

RBS225-10-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 25 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464102
RBS232-10-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 7,5
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 32 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464114

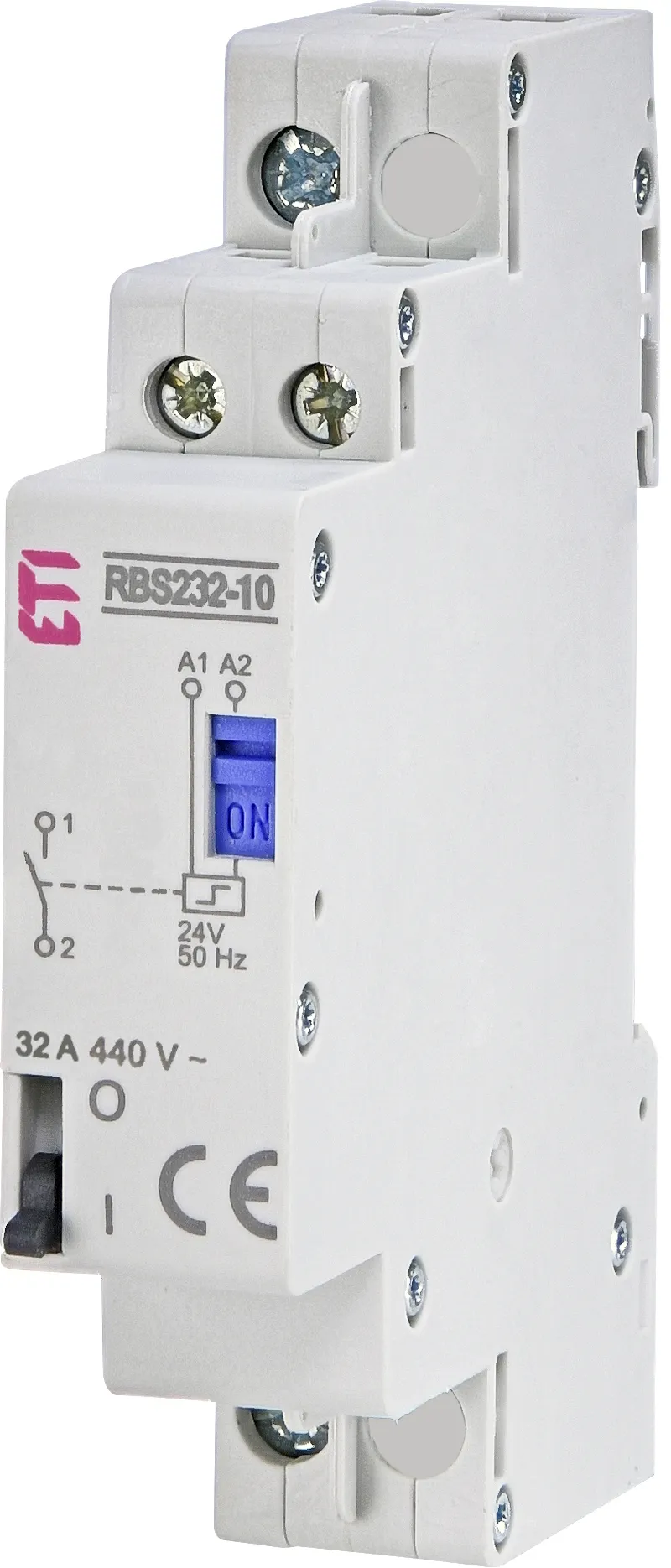

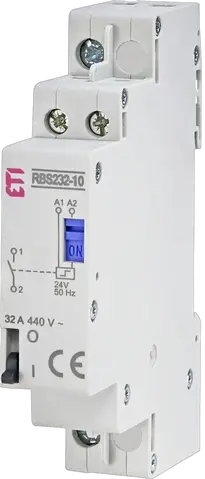

RBS232-10-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 7,5
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 32 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464103

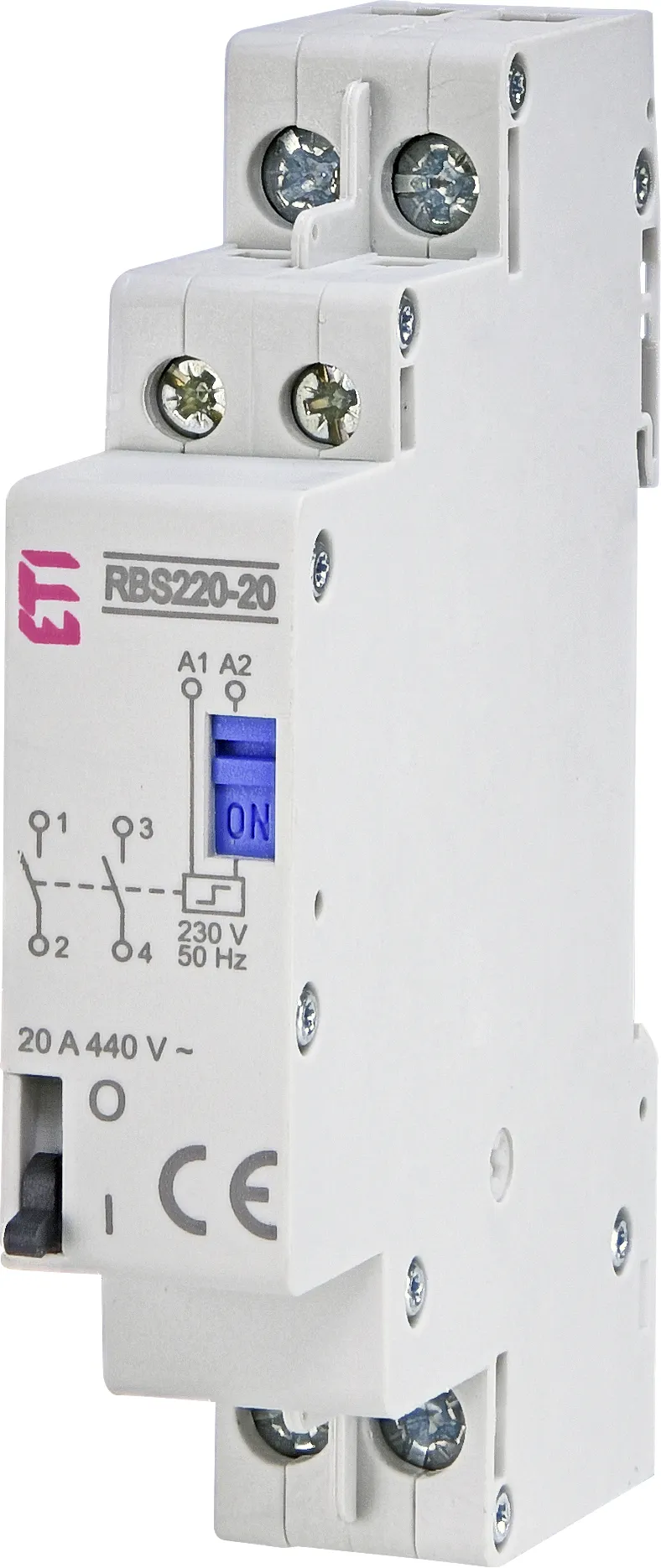

RBS220-20-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 20 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464115

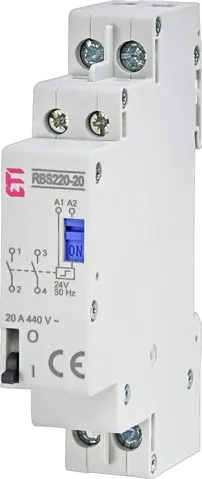

RBS220-20-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 20 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464106
RBS220-11-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 20 A gL
- Min. impulse duration between two impulses (ms):
- 150

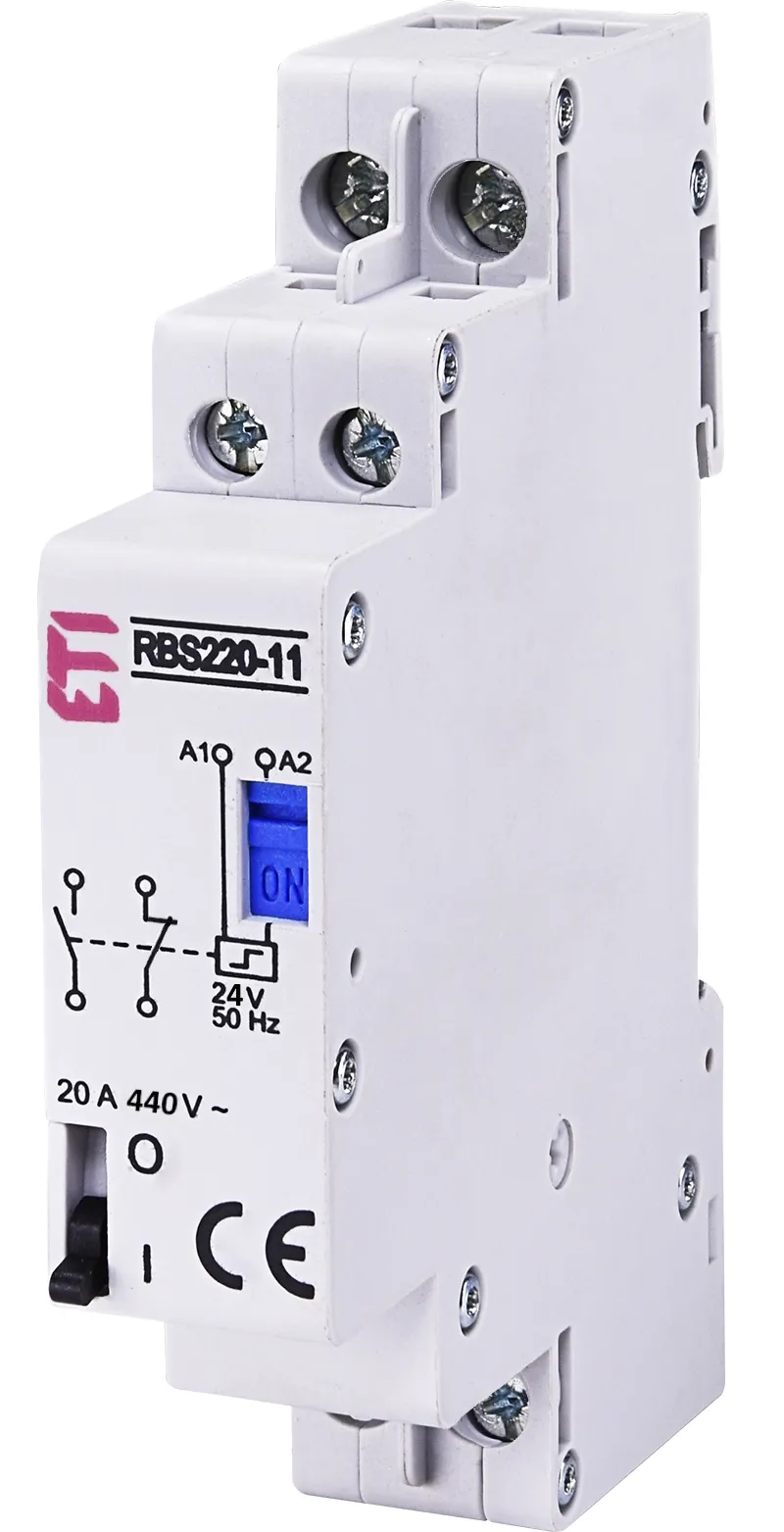

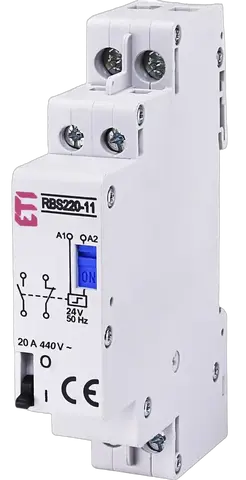

002464118
RBS220-11-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 20 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464109
RBS220-1C-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 20 A gL
- Min. impulse duration between two impulses (ms):
- 150

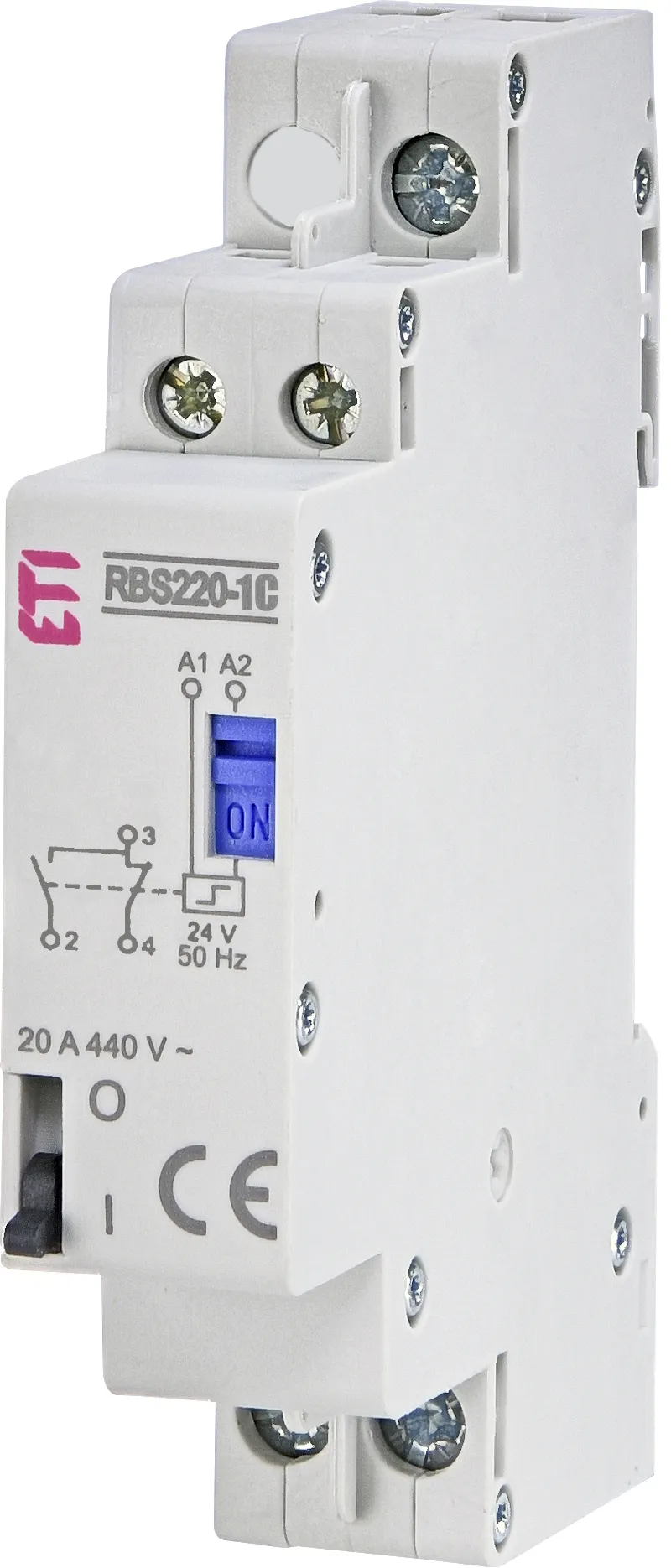

002464121

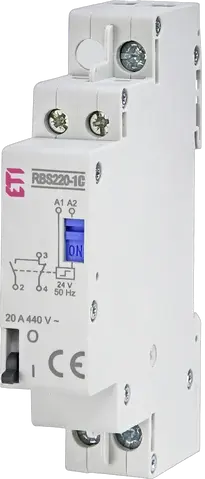

RBS220-1C-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 20 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464104
RBS225-20-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 25 A gL
- Min. impulse duration between two impulses (ms):
- 150

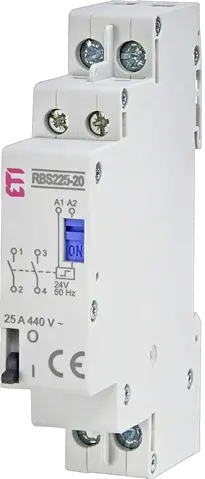

002464116

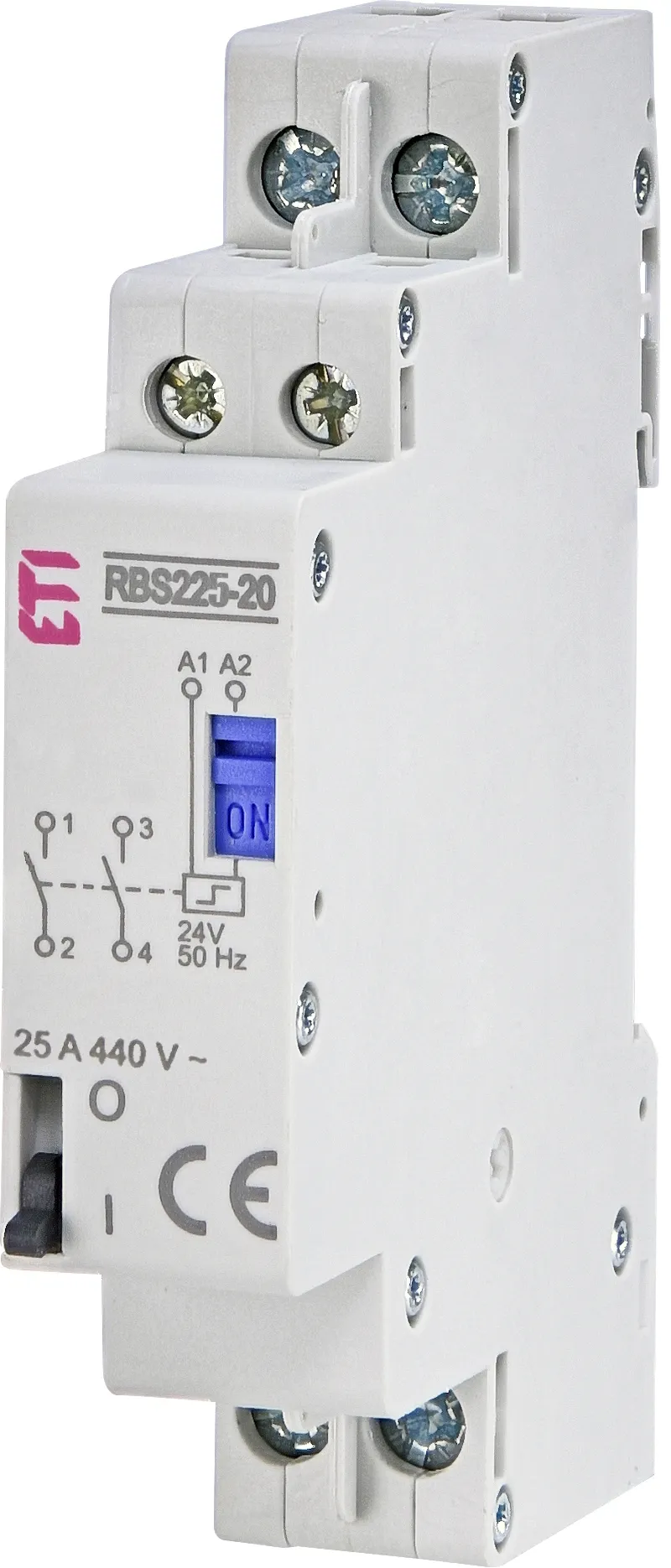

RBS225-20-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 25 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464107
RBS225-11-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 25 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464119
RBS225-11-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 25 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464110
RBS225-1C-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 25 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464122

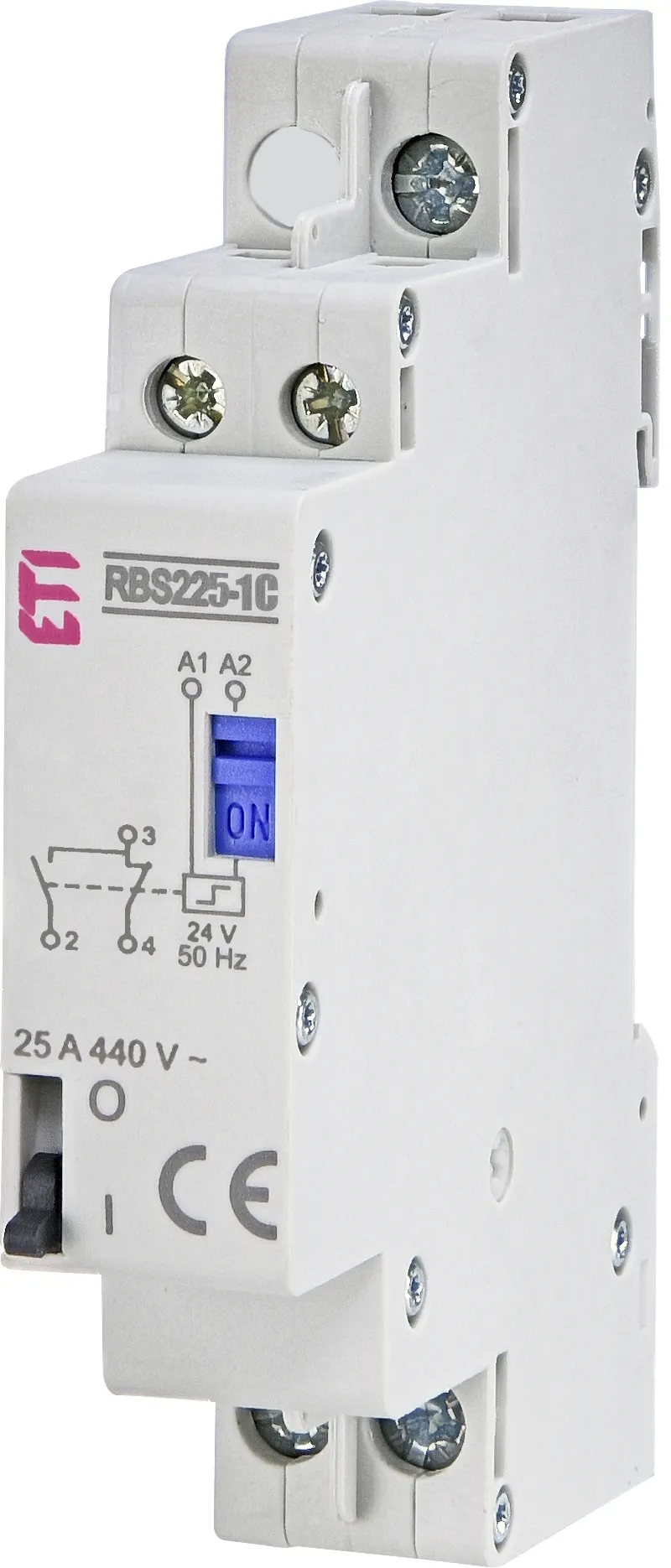

RBS225-1C-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 25 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464105
RBS232-20-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 7,5
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 32 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464117
RBS232-20-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 7,5
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 32 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464108
RBS232-11-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 7,5
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 32 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464120
RBS232-11-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 7,5
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 32 A gL
- Min. impulse duration between two impulses (ms):
- 150

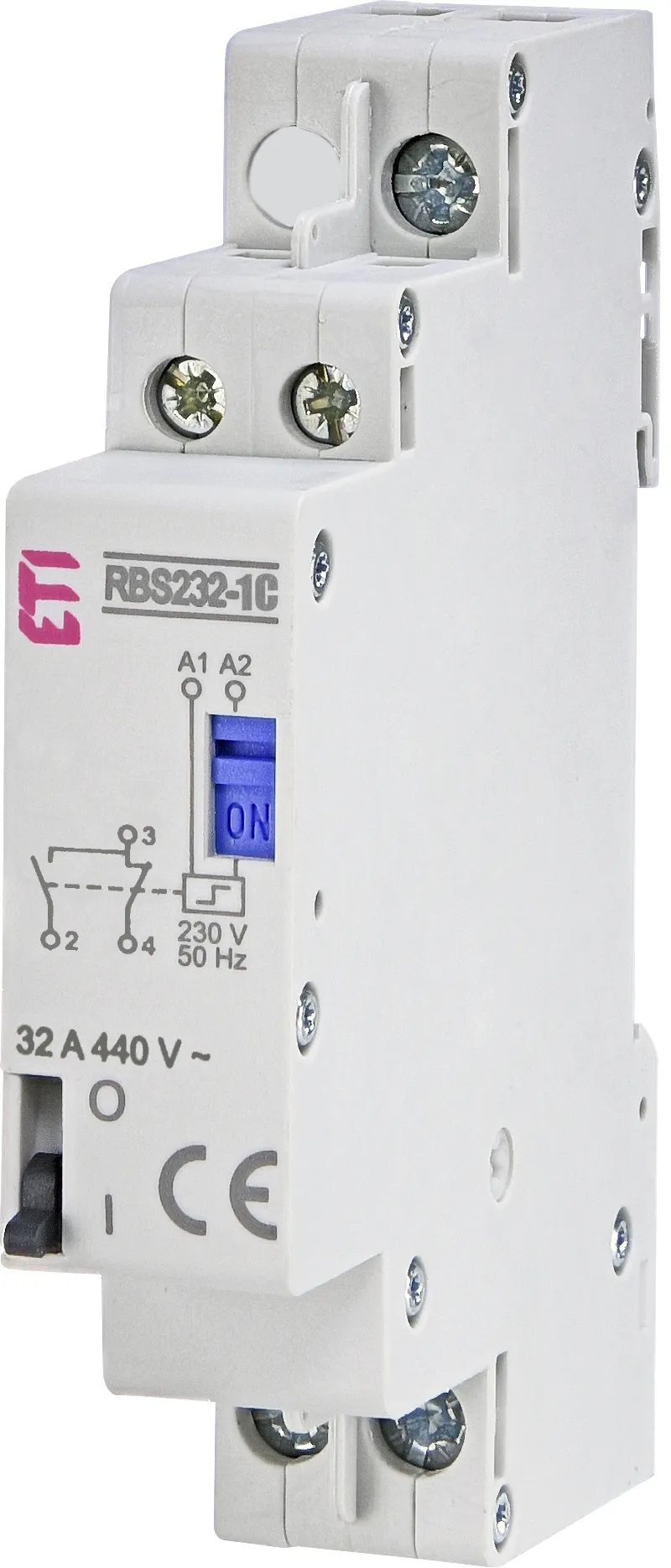

002464111
RBS232-1C-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 7,5
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 32 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464123
RBS232-1C-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 7,5
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 32 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464127
RBS420-21-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 20 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464145
RBS420-21-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 20 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464130
RBS420-30-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 20 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464148
RBS420-30-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 20 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464128
RBS425-21-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 25 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464146
RBS425-21-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 25 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464131
RBS425-30-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 25 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464149
RBS425-30-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 15
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 25 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464129
RBS432-21-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 7,5
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 32 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464147
RBS432-21-24V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 7,5
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 32 A gL
- Min. impulse duration between two impulses (ms):
- 150
002464132

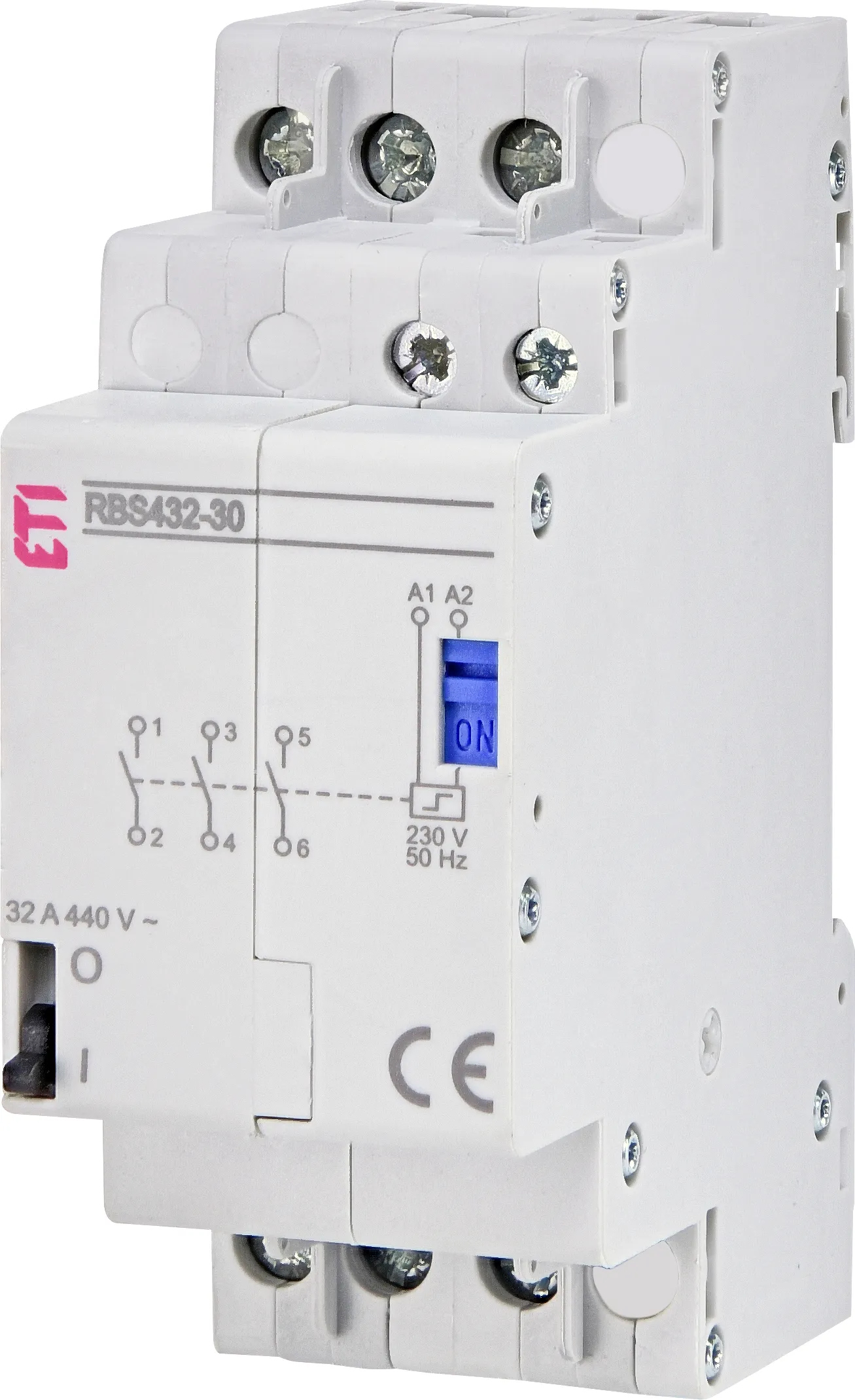

RBS432-30-230V AC
- Klassifizierungsname:
- Schalter
- Max. number of impulses per minute:
- 7,5
- Storage temperature (°C):
- -30...+80
- Max. back-up fuse for short circuit protection:
- 32 A gL
- Min. impulse duration between two impulses (ms):
- 150
