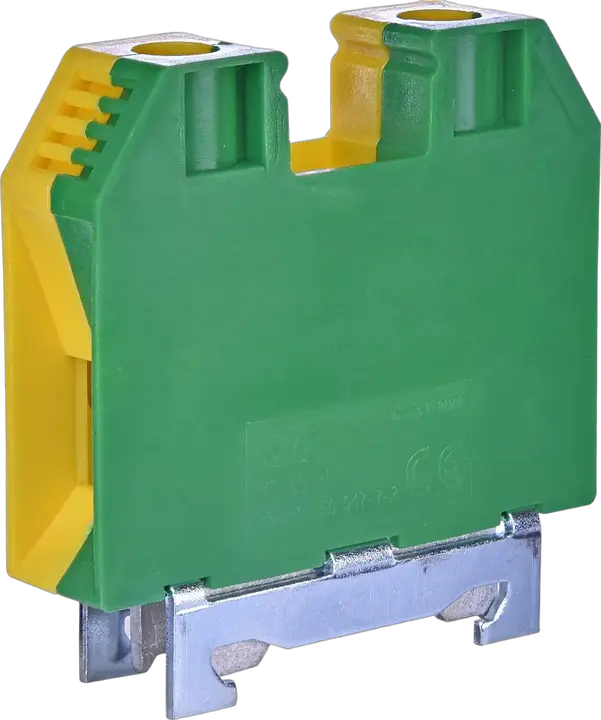

VS 35 PE Reihenklemme
- ETI-Code:
- 003901539
- Katalog Gruppe 1:
- SM-Aufstellungsterminals
- Montagetyp:
- DIN rail 35 mm
- Typ:
- SM Line-up terminals
- Niveau:
- Einfach
- Farbe:
- Grün, Gelb
- Bemessungsquerschnitt:
- 35 mm²
- Max. Strom mit Nennquerschnitt:
- 95 mm²
- Querverbindung:
- ✗
- Endabschnitt notwendig:
- ✗
- Funktion:
- Ground terminal block VS PE
3 Dokumente
12 Logistik
Produkt
- EAN-Code für ein einzelnes Produkt
- 3838400082756
- Gewicht
- 0,096 kg
- Nettobreite
- 16 mm
- Nettohöhe
- 67 mm
- Nettotiefe
- 64,5 mm
- Stock unit of measure
- pcs
Transportverpackung
- Menge der Transportverpackung
- 20 pcs
- EAN-Code für die Transportverpackung
- 3831012325037
- Gewicht der Transportverpackung
- 1,912 kg
- Volumen der Transportverpackung
- 1,79 dm³
- Palettenmenge
- 8.360 pcs
- Customs tariff
- 85369010
11 ETIM
- Width
- 16 mm
- Material insulation body
- Thermoplastic
- Rated current In
- 95 A
- Mounting method
- DIN rail (top hat rail) 35 mm
- Type of electrical connection 1
- Clip connection
- Colour
- Green/yellow
- Height
- 67 mm
- Connectable conductor cross section solid-core(Min)
- 6 mm²
- Connectable conductor cross section fine-strand without cable end sleeve(Min)
- 10 mm²
- Connectable conductor cross section solid-core(Max)
- 35 mm²
- Connectable conductor cross section fine-strand without cable end sleeve(Max)
- 35 mm²
