004667007
Veraltet

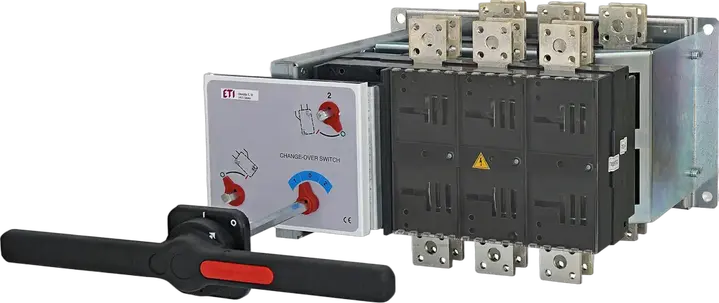

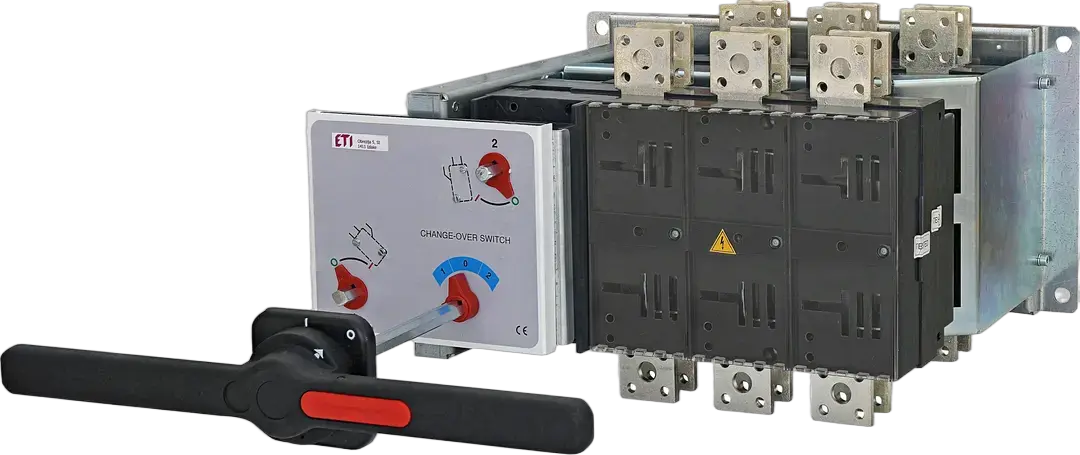

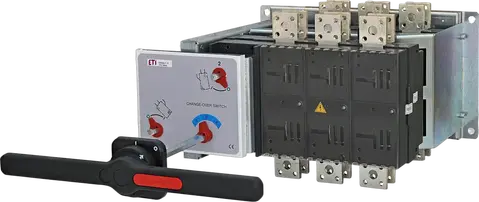

* LA5/D 1600 3p CO Umschalter
- ETI-Code:
- 004667007
- Funktion:
- Manual change-over compact switches (1-0-2) with door interlock handle
- Bemessungsstrom:
- 1600 A
- Typ:
- Door Interlock handle
- Anzahl der Pole:
- 3
- Katalog Gruppe 1:
- LA CO
2 Dokumente
8 Logistik
Produkt
- Gewicht
- 24 kg
- Stock unit of measure
- pcs
Transportverpackung
- Menge der Transportverpackung
- 1 pcs
- EAN-Code für die Transportverpackung
- 3838895475712
- Gewicht der Transportverpackung
- 44,5 kg
- Volumen der Transportverpackung
- 170 dm³
- Palettenmenge
- 11 pcs
- Customs tariff
- 85365080
12 ETIM
- Version as maintenance-/service switch
- Ja
- Max. rated operation voltage Ue AC
- 1.000 V
- Suitable for floor mounting
- Ja
- Rated permanent current Iu
- 1.600 A
- Type of control element
- Door coupling rotary drive
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Rated operation power at AC-23, 400 V
- 630 kW
- Suitable for distribution board installation
- Ja
- Version as main switch
- Ja
ETIM-Klassifizierung – Version 9.0
